ECOPULSE is available in two versions: Trio (Trimaran) and Prao, here are its main characteristics:

	Trio version (Trimaran)	Prao version
Dimensions: Length x Width x Height, in cm	520 x 185 x 80	520 x 210 x 80
Weight in kg, with a 1200 W motor and 50 Ah battery	76	64
Weight in kg, without motor and battery	60	48
Floatability in liters (dm³)	476	357
Maximum recommended load in kg/lbs	220/486	180/397
Draft in cm	50	50
Sailing catégory	D	D

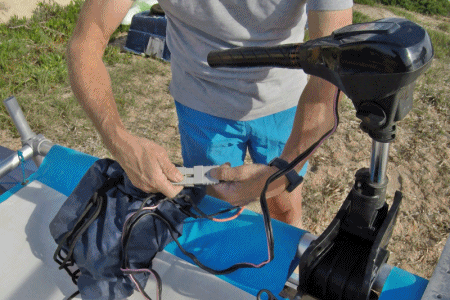

The motor is installed in a dedicated compartment located in front of the driver. Mounting the motor takes less than a minute.
The battery is connected with an Anderson-type plug. It recharges at home in 3 hours.
Launching is done using a lightweight trolley that can roll on sand.

We have selected two sets of motor and battery, for their performance, reliability, quiet operation, smoothness, and ease of use :

Motor power	Battery		Weight in Kg/Lbs		Maximum speed in km/h
	Capacity	Voltage	Motor	Battery
1 200 Watt	50 Ah	24 V	10/22	6/13	14
2 400 Watt	50 Ah	48 V	13/29	10/22	18

The throttle offers forward, stop, and reverse, with precise, progressive and pleasant power control.
It's easy to ride, even for a young child.
The battery level is indicated by a voltmeter located on the motor, clearly visible in all weather conditions.

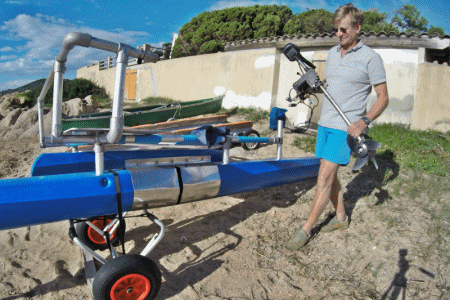

Motor installation	Motor mounting

With its motor rotating on its axis, the ECOPULSE can move in all directions:
180° rotation: reverse.
90° rotation to the right or left: lateral movement. Etc.
